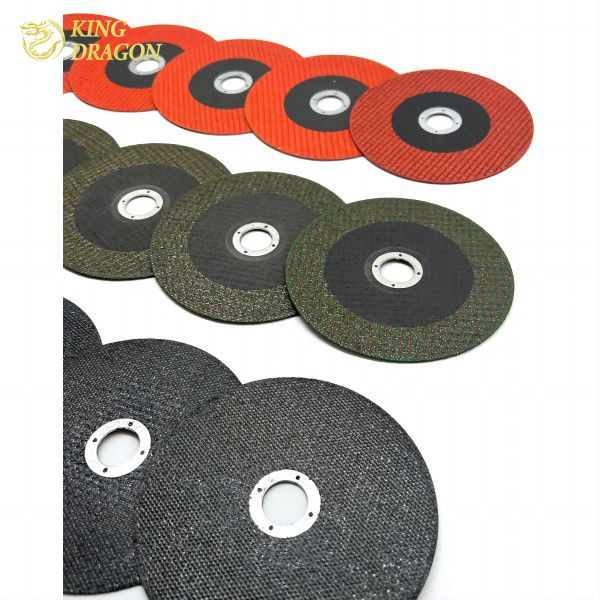

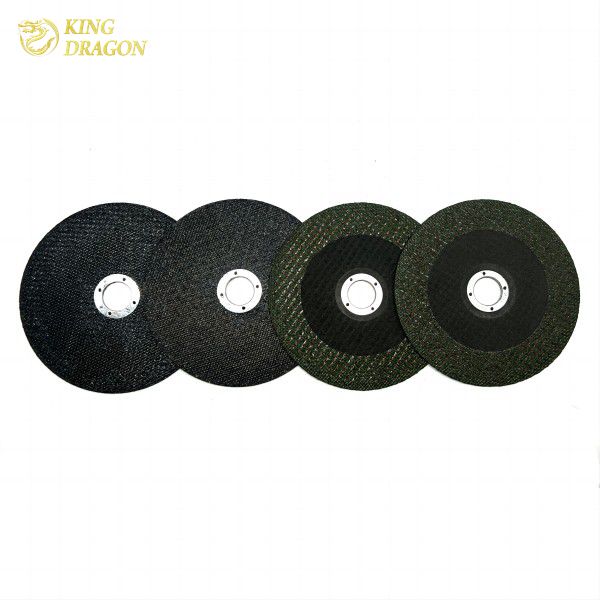

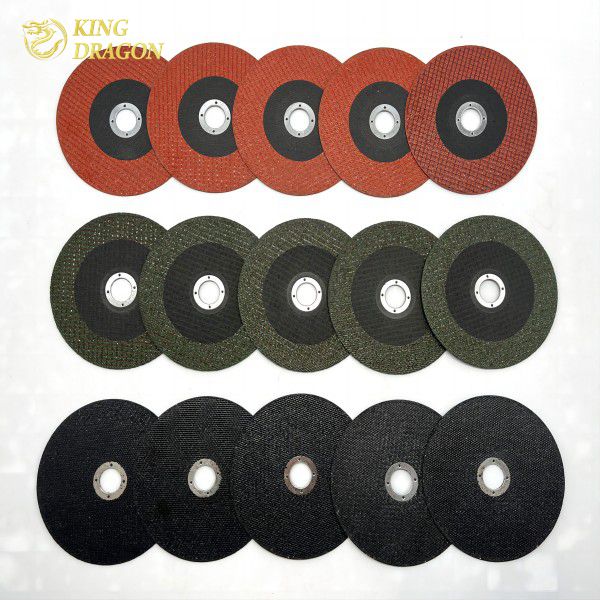

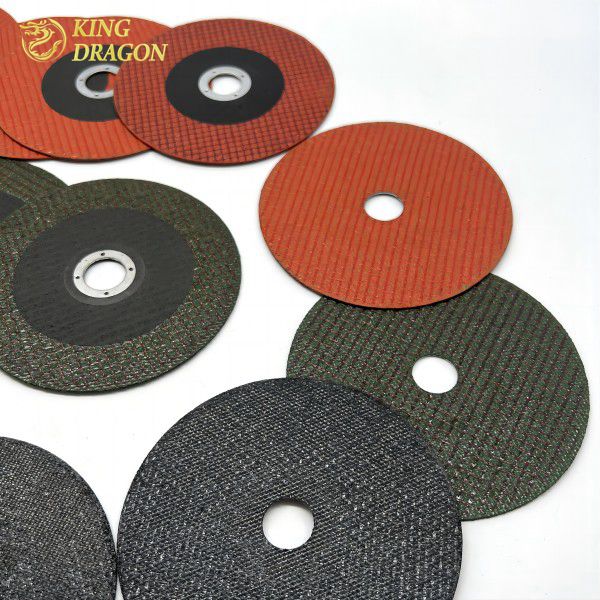

Rein-bond Thin Cutting Disc

Thickness:
1mm/1.6mm/2mm/2.5mm
Diameter:
100mm/115mm/125mm/150mm/180mm/230mm
Specification:
AWA46 QBF
Max.Speed:
70m/s:13700,11900,11000,9100,7600,5950
80m/s:15300,13300,12200,10200,8500,6600
Facebook Twitter Google+ LinkedIn

Introduction


Mainly used for stainless steel cutting, non-ferrous metal cutting, thin wall small diameter workpiece cutting, workpiece slotting and so on. High impact strength, high wear resistance, good sharp self-sharpening, high cutting efficiency.

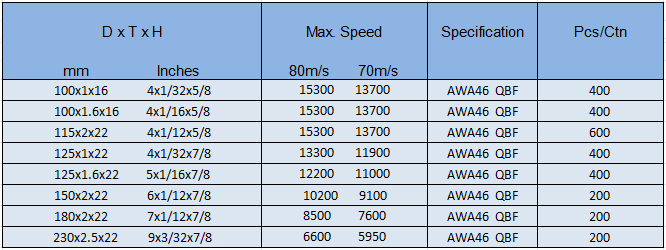

Parameter

Safety Instructions

Instructions:
1. Please try to choose operation indoors environment which without clutter phenomenon. The user should also concentrate on the operation to avoid an accident. If use it at outdoor, try to choose a quiet environment.
2. During the polishing process, the workpiece should be kept parallel to the working water level.

3. The user's power should be evenly distributed when operation. Never suddenly heavy and lightly.

4. Avoid moving or slipping the workpiece during polishing.



Warning:

1. Must wear dustproof mask and goggles when working.

2. Never exceed the maximum safe speed.

3. Discs must be mounted correctly and used with metal guards and goggles.
